Home / Our Products / Plywood / SRG Captor Plywood

SRG Range of Plywood

The Strength Behind

Every Structure

Subheading: Discover SRG’s range of precision-crafted plywood engineered for endurance, perfected through generations.

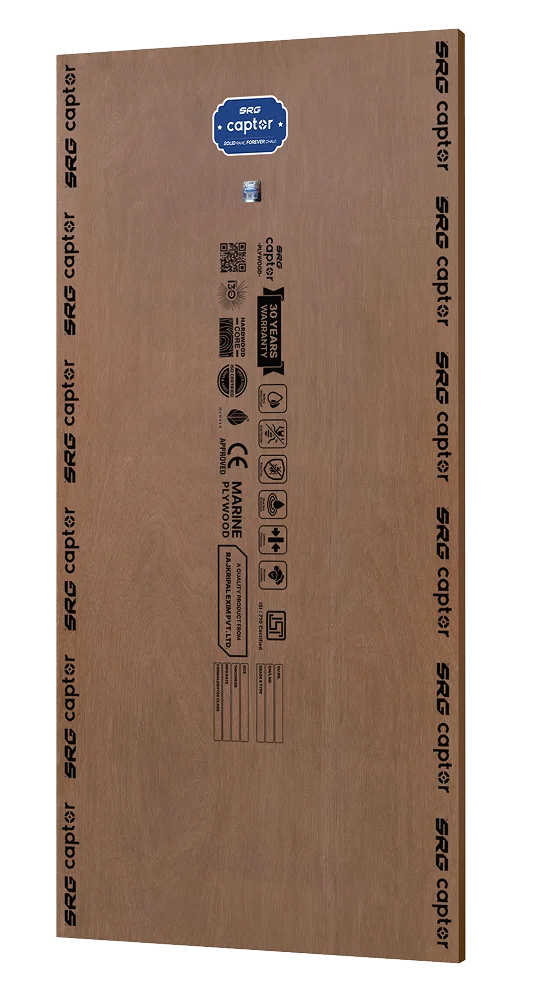

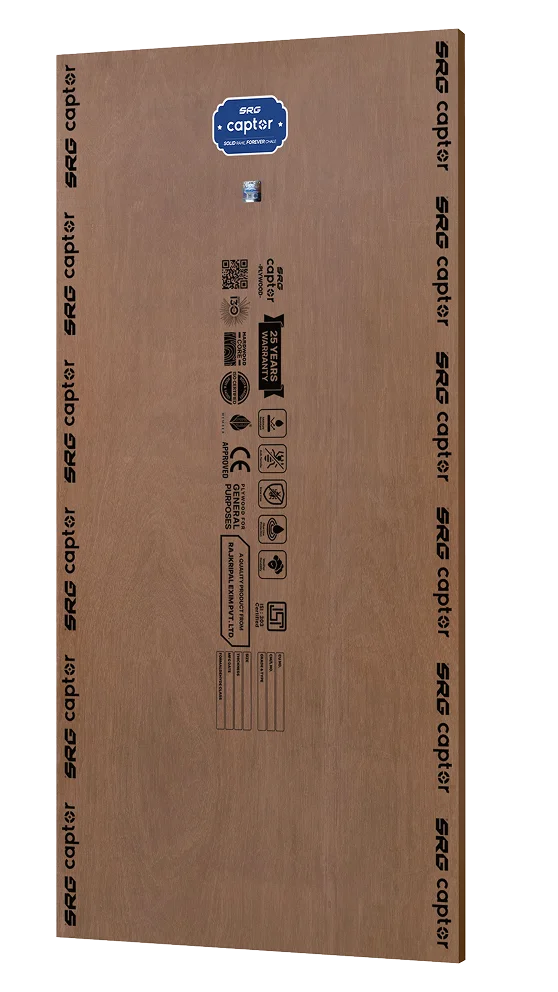

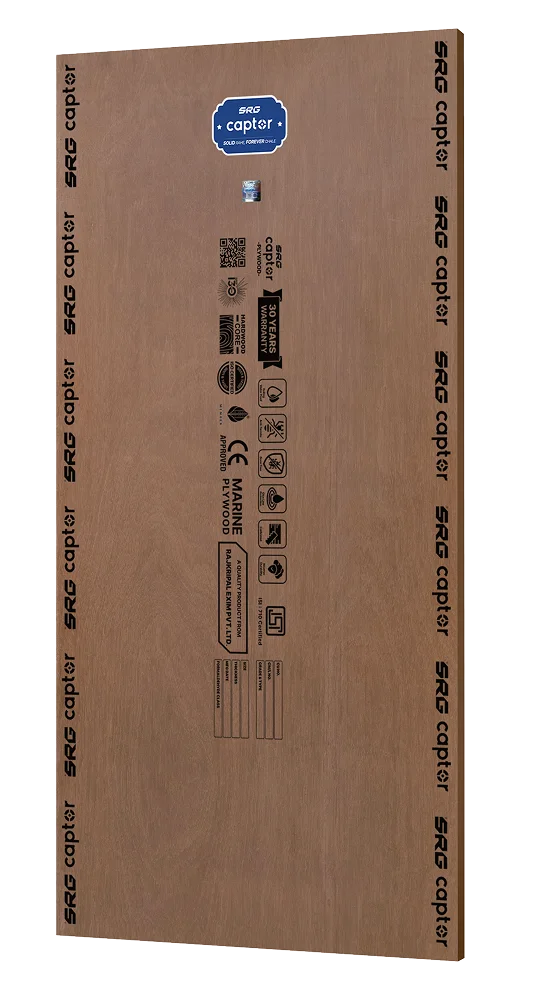

SRG CAPTOR Plywood

SRG uses only the most premium quality tropical hardwood that showcases high strength and stiffness to manufacture Captor Grade Plywood. We bond this plywood, at high pressure and temperature, through a thermo hot press, which gives rise to its incredible structural strength.

SRG Captor comes with a warranty period of 30 *years.

Get A Quote

Born tough as per IS 710: 2010, Wistara BWP Grade Plywood is manufactured using the best quality hard core, and is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.

Designed to withstand just about any climatic condition, Wistara BWP Grade Plywood is generally used in making partitions, paneling, Kitchen Furniture, corridors, vehicle and cargo hold covers, and so on.

It comes with 25* solid years of warranty.

Moisture Content : 8-10%
Glue shear strength (In dry state) : >1430 N
Adhesion of plies : Excellent
Resistance to water : 6 cyclic boiling water proof
Tensile Strength (Along the grain) : >>47 N/mm2
Tensile Strength (Across the grain) : >43 N/mm2
Highlighted USP : Imported hardwood, consistent quality
Nail & Screw Withdrawal : Screw > 220 KG Nail > 58 kg
Modules of elasticity (Along the grain) : 7800 N/mm2
Modules of elasticity (Across the grain) : 4900 N/mm2
Modules of rupture (Along the grain) : 52 N/mm2
Modules of rupture (Across the grain) : 40 N/mm2
Mycological Test : 1130 N
Density : 650 kg/m3

Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3

Thickness: 6mm, 9mm, 12mm, 16mm, 19mm

Born tough as per IS 710: 2010, Wistara BWP Grade Plywood is manufactured using the best quality hard core, and is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.

Designed to withstand just about any climatic condition, Wistara BWP Grade Plywood is generally used in making partitions, paneling, Kitchen Furniture, corridors, vehicle and cargo hold covers, and so on.

It comes with 25* solid years of warranty.

Moisture Content : 8-10%
Glue shear strength (In dry state) : >1700 N
Adhesion of plies : Excellent
Resistance to water : 6 cyclic boiling water proof
Tensile Strength (Along the grain) : >52 N/mm2
Tensile Strength (Across the grain) : >45 N/mm2
Highlighted USP : The toughest in the range, Pure Gurjan wood
Nail & Screw Withdrawal : Screw > 240 KG Nail > 66 kg
Modules of elasticity (Along the grain) : 9170 N/mm2
Modules of elasticity (Across the grain) : 4950 N/mm2
Modules of rupture (Along the grain) : 60 N/mm2
Modules of rupture (Across the grain) : 50 N/mm2
Mycological Test : 1500 N
Density : 830 kg/m3

Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3

Thickness: 6mm, 9mm, 12mm, 16mm, 19mm

Born tough as per IS 710: 2010, Wistara BWP Grade Plywood is manufactured using the best quality hard core, and is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.

Designed to withstand just about any climatic condition, Wistara BWP Grade Plywood is generally used in making partitions, paneling, Kitchen Furniture, corridors, vehicle and cargo hold covers, and so on.

It comes with 25* solid years of warranty.

Moisture Content : 8-10%
Adhesion of plies : Excellent
Resistance to water : Min 3 cyclic warm water pass
Tensile Strength (Along the grain) : >52 N/mm2
Tensile Strength (Across the grain) : >45 N/mm2
Highlighted USP : Tested Tough, Trusted Quality
Nail & Screw Withdrawal : Screw > 198 KG Nail > 55 kg
Modules of elasticity (Along the grain) : 5150 N/mm2
Modules of elasticity (Across the grain) : 3350 N/mm2
Modules of rupture (Along the grain) : 45 N/mm2
Modules of rupture (Across the grain) : 25 N/mm2
Mycological Test : SATISFACTORY
Density : 630 kg/m3

Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3

Thickness: 6mm, 9mm, 12mm, 16mm, 19mm
