SRG Range of Plywood

The Strength Behind

Every Structure

Discover SRG’s range of precision-crafted plywood engineered for endurance, perfected through generations.

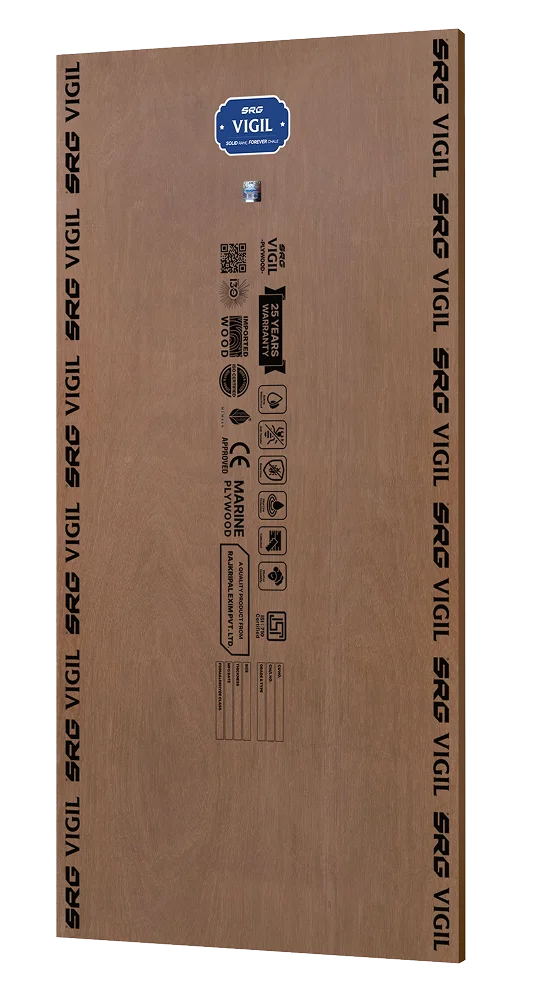

SRG VIGIL PLYWOOD

SRG vigil Grade Plywood is manufactured from the most superior quality hard core that displays a significant stiffness and high strength. Only selected hardwood timber goes into making this beautiful range of plywood.

It is bonded, at a very high pressure and temperature, through hot press. Each core veneer is treated by a phosphoric compound directly with adhesive during processing.

Part of our eco-friendly product range, SRG Vigil Plywood comes with 25* years of warranty.

Born tough as per IS 710: 2010, Vigil BWP Grade Plywood is bonded with finest quality phenol formaldehyde resin of BWP grade, that is manufactured at our own highly modern resin plant. The process and parameters of our resin manufacturing are strictly controlled and guided by IS 848: 2006.

Rough to withstand many distinct climatic conditions, this plywood gets used in making partitions, paneling, cabins, corridors, vehicle and cargo hold covers, amongst other things.

It comes with 25* years of warranty.

Moisture Content : 8-10%
Glue shear strength (In dry state) : >1400 N
Adhesion of plies : Excellent
Resistance to water : 6 cyclic boiling water proof
Tensile Strength (Along the grain) : >>46 N/mm2
Tensile Strength (Across the grain) : >41 N/mm2
Highlighted USP : Imported hardwood, consistent quality
Nail & Screw Withdrawal : Screw > 215 KG Nail > 55 kg
Modules of elasticity (Along the grain) : 7150 N/mm2
Modules of elasticity (Across the grain) :4880 N/mm2
Modules of rupture (Along the grain) : 49 N/mm2
Modules of rupture (Across the grain) : 38 N/mm2
Mycological Test : 1110 N
Density : 630 kg/m3

Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3

Thickness: 6mm, 9mm, 12mm, 16mm, 19mm

Born tough as per IS 710: 2010, Wistara BWP Grade Plywood is manufactured using the best quality hard core, and is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.

Designed to withstand just about any climatic condition, Wistara BWP Grade Plywood is generally used in making partitions, paneling, Kitchen Furniture, corridors, vehicle and cargo hold covers, and so on.

It comes with 25* solid years of warranty.

Moisture Content : 8-10%
Glue shear strength (In dry state) : >1700 N
Adhesion of plies : Excellent
Resistance to water : 6 cyclic boiling water proof
Tensile Strength (Along the grain) : >52 N/mm2
Tensile Strength (Across the grain) : >45 N/mm2
Highlighted USP : The toughest in the range, Pure Gurjan wood
Nail & Screw Withdrawal : Screw > 240 KG Nail > 66 kg
Modules of elasticity (Along the grain) : 9170 N/mm2
Modules of elasticity (Across the grain) : 4950 N/mm2
Modules of rupture (Along the grain) : 60 N/mm2
Modules of rupture (Across the grain) : 50 N/mm2
Mycological Test : 1500 N
Density : 830 kg/m3

Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3

Thickness: 6mm, 9mm, 12mm, 16mm, 19mm

Born tough as per IS 710: 2010, Wistara BWP Grade Plywood is manufactured using the best quality hard core, and is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.

Designed to withstand just about any climatic condition, Wistara BWP Grade Plywood is generally used in making partitions, paneling, Kitchen Furniture, corridors, vehicle and cargo hold covers, and so on.

It comes with 25* solid years of warranty.

Moisture Content : 8-10%
Adhesion of plies : Excellent
Resistance to water : Min 3 cyclic warm water pass
Highlighted USP : Proven Strength, Always Reliable
Nail & Screw Withdrawal : Screw > 192 KG Nail > 50 kg
Modules of elasticity (Along the grain) : 4850 N/mm2
Modules of elasticity (Across the grain) : 3000 N/mm2
Modules of rupture (Along the grain) : 40 N/mm2
Modules of rupture (Across the grain) : 22 N/mm2
Mycological Test : SATISFACTORY
Density : 602 kg/m3

Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3

Thickness: 6mm, 9mm, 12mm, 16mm, 19mm
