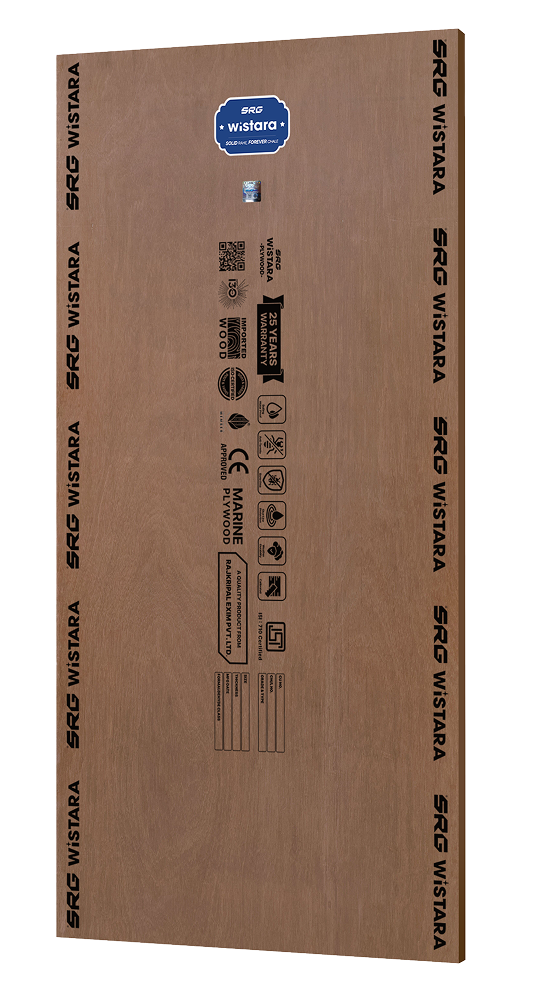

Born tough as per IS 710: 2010, Wistara BWP Grade Plywood is manufactured using the best quality hard core, and is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.
Designed to withstand just about any climatic condition, Wistara BWP Grade Plywood is generally used in making partitions, paneling, Kitchen Furniture, corridors, vehicle and cargo hold covers, and so on.
It comes with 25* solid years of warranty.
Moisture Content : 8-10%
Glue shear strength (In dry state) : >1400 N
Adhesion of plies : Excellent
Resistance to water : 6 cyclic boiling water proof
Tensile Strength (Along the grain) : >46 N/mm2
Tensile Strength (Across the grain) : >41 N/mm2
Highlighted USP :
Imported hardwood,
no compromises
Nail & Screw Withdrawal :
Screw > 215 KG
Nail > 55 kg
Modules of elasticity (Along the grain) : 7150 N/mm2
Modules of elasticity (Across the grain) : 4880 N/mm2
Modules of rupture (Along the grain) : 49 N/mm2
Modules of rupture (Across the grain) : 38 N/mm2
Mycological Test : 1110 N
Density : 630 kg/m3
Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3
Thickness: 6mm, 9mm, 12mm, 16mm, 19mm

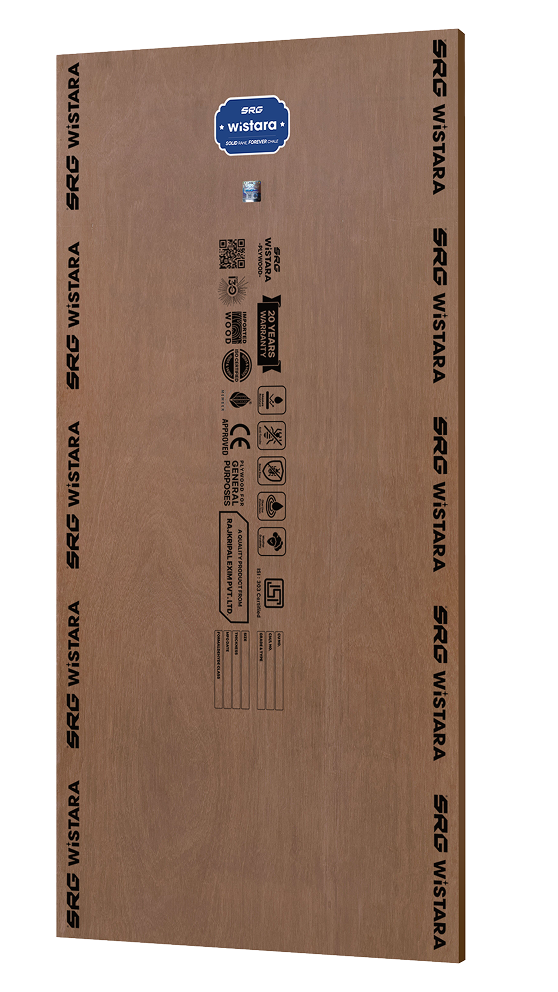

Wistara MR( Moisture Resistance grade) is bonded with synthetic amino plus resin. The resin used here is manufactured at SRG’s own innovatory manufacturing plant, wherein the process and parameters of resin manufacturing are controlled and guided as per IS 848 : 2006.
This plywood is suitable for making Indoor Furniture, ceilings, furniture and more.
It comes with 20*years of warranty.
Moisture Content : 8-10%
Adhesion of plies : Excellent
Resistance to water : Min 3 cyclic warm water pass
️
Highlighted USP :
Reliable Quality Every Sheet
Modules of elasticity (Along the grain) : 4850 N/mm2
Modules of elasticity (Across the grain) : 3000 N/mm2
Modules of rupture (Along the grain) : 40 N/mm2
Modules of rupture (Across the grain) : 22 N/mm2
Mycological Test : SATISFACTORY
Density : 602 kg/m3
Nail & Screw Withdrawal :
Screw > 192 KG
Nail > 50 kg
Size in feet: 8X4, 7X4, 6X4, 8X3, 7X3, 6X3
Thickness: 6mm, 8mm, 12mm, 15mm, 18mm
